Luminescence Release 1.1.1

Exactly 3 months from our previous release, we are excited to announce the release of version 1.1.1 of the Luminescence R package.

We were initially wondering whether this should be a minor or a major release, as we put a lot of effort in to make the package more solid and refined; we decided to call it a minor release just because there are not many new features in this version. However, there are some important regression fixes, many graphical improvements and also some performance speed-ups. In total we addressed 69 issues in 371 commits.

One new function and some removals

Only one new small function was added in this release, correct_PMTLinearity(), which can be used to correct the linearity of photomultiplier tube (PMT) counts to avoid saturation effects.

On the other hand, we removed a few functions that we already set as defunct or deprecated in previous releases:

• Analyse_SAR.OSLdata() was an earlier version of what was then reimplemented in a more complete way in analyse_SAR.CWOSL()
• calc_Kars2008() had been since several versions just a shim to calc_Huntley2006()
• PSL2Risoe.BINfileData() was renamed to convert_PSL2Risoe.BINfileData()
• Second2Gray() was renamed to convert_Second2Gray()

Additionally, we removed get_Risoe.BINfileData() directly because the only thing it did was to report that it could not do anything. This was a leftover from ancient designs that never materialised, so we did not go through the usual process of deprecating a function before its removal.

More removals of deprecated functions will occur in the next release, so if you already see some deprecation warnings, you’d better sorting them out in advance.

Regression fixes

A regression that affected plot_DoseResponseCurve() (and consequently also analyse_SAR.CWOSL() and analyse_pIRIRSequence()) caused a mismatch between the legend symbols and the plotted regeneration/dose points.

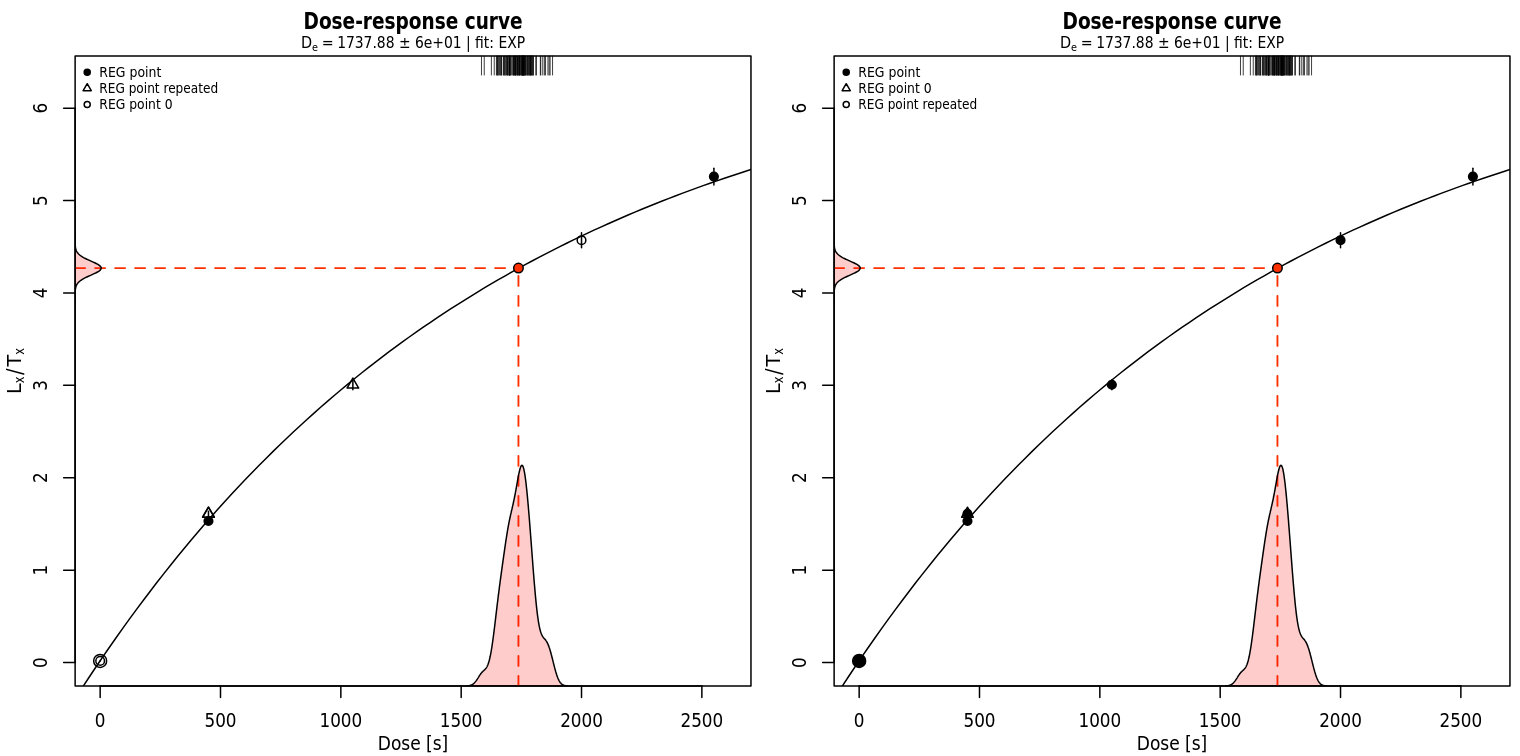

This can be seen from these plots, where on the left is the one produced by version 1.1.0 and on the right is the fixed version produced by version 1.1.1:

The difference is at first subtle, but it’s clear that the previous version assigned the plotted the points using the wrong symbols, thus making the plot very confusing and not really usable.

Also plot_DRCSummary() saw its functionality restored, after a regression prevented the dose-response curve from being plotted, resulting in a mostly empty plot.

We also discovered a regression in calc_Huntley2006(): after the work we put during the 1.0.0 release to speed up the function, an unintentional change snuck it that made it slow again. This had originally passed under our radar, and we realised only by chance when collecting some numbers on the performance improvements we could measure in the package. Well, it turns out that for calc_Huntley2006() we couldn’t see any.

After some investigation, it turned out that the n.MC argument meant to control the number of Monte Carlo iterations in the function was also being passed to fit_DoseResponseCurve(). This effectively doubled the amount of work done for no perceptible gain. This was not the expected behaviour, and explained the poor performance. After the fix, we saw a 2x speedup for our default value of 10,000 Monte Carlo iterations.

Correctness and functionality improvements

A question that has come up a few times in the context of the fit_DoseResponseCurve() is what should be done when the fit produces a negative De value in the default “interpolation” mode. The answer to that is that such value is meaningless and should not be reported. Most of the times, such values are generated if the dataset is somewhat misspecified or presents other peculiarities.

However, looking into this made us realise that our handling of negative values was imprecise. In particular, the computation of the De.MC, De.Error and HPDI (Highest Density Intervals) as implemented in fit_DoseResponseCurve() was not entirely correct, and produced some confusing results in those cases.

We believe to have solved the issue, and in doing so, we also made the output clearer by reordering some columns and clarifying those that are reported only for internal use.

Also calc_Statistics() has seen a small correctness improvement: what was previously reported as the weighted median was actually a simple (unweighted) median. We have now revamped the internal helper function to compute the weighted median so that it could be used also inside calc_Statistics(), and now the function reports the expected value.

In smooth_RLum()we have added support for the Poisson smoother of Carter et al. (2018). This smoother is helpful to ensure that the dark-background counts signals measured by a photomultiplier tube follow a Poisson statistic: values that are statistically unlikely to be coming from a Poisson distribution (according to a user-controlled threshold) can be smoothed out using the average over four neighbours.

get_RLum() is a function that is used quite often inside the package to handle and transform the classes of objects generated by Luminescence (such as RLum.Analysis, RLum.Data.Curve, and so on). An internal optimization increased the speed of the function, but this is noticeable only when handling a sufficiently large number of objects. For example, when merging a list of 79 RLum.Analysis objects, each containing 118 curves, we saw the time spent by merge_RLum() go from 3.5s to 1.5s.

Code size reduction

One small internal change has brought a surprising reduction in number of lines in the package.

Since R version 4.4.0 (released in April 2024), the new %||% operator has been added to the language. The way it works is rather simple: an expression like L %||% R returns L if L is not NULL, otherwise it returns R. In other words, it checks if the first argument is NULL before using it; if it turns out to be NULL, then it reverts to the second argument, which can be thought of as a default value.

The interesting thing is that the implementation of this operator is really straightforward, as it’s literally just:

if (is.null(L)) R else L

This means that we could start using it even though at the moment Luminescence still supports R 4.3, by providing our own implementation.

In practice, this new operator lets us transform this code:

main <- if (is.null(plot.settings$main[[i]])) {
  temp[[i]]@recordType
} else{
  plot.settings$main[[i]]
}

into this:

main <- plot.settings$main[[i]] %||% temp[[i]]@recordType

When we introduced it in issue 955, it was clear that it could make some of the code less verbose and more readable, but it was a pleasant surprise to see that overall this let us remove over 250 lines of code (that’s almost 1% of the total R code in the package).

Talking about package size, this release contains 26,580 lines of code, a sizable decrease from the 27,604 of just three months ago. This is the result of the function removals mentioned above, but also of a massive consolidation of duplicated code in plot_AbanicoPlot().

Stability improvements

We’ve recently discussed of fuzz testing, and in this release we spent some time trying to figure out new ways of making Luminescence crash, so that we could get some insight into it and make it more robust.

In this release we filed and fixed 19 issues discovered by fuzzing, which is the most we’ve ever found, accounting for more than half of the total. This was due to the time spent refining the CBTF package so that it could be released on CRAN.

In terms of testing, our testsuite contains now 3,353 tests, which is a 10% increase from our previous release (we had 3,088 in 1.1.0). Many are snapshot and graphical snapshot tests, which are the type of test that can give us the best protection against unintentional changes.

Upcoming work

In the short term we’ll resume working on RLumShiny, to further expand the set of applications it provides and perhaps improve its performance.

As always, bug reports are very welcome, in particular if you spot regression or performance problems. And if you’d like to contribute new functionalities or bug fixes, check out our guidelines for contributors.
