Luminescence Release 1.1.2

Another 3 months exact from our previous release, we are very proud to announce the release of version 1.1.2 of the Luminescence R package.

This release comes with a many (mostly rare) crashes being fixed, a number of cosmetic improvements to the plots, and a massive speed boost in the analyse_IRSAR.RF() function. Behind the scenes, during these past months we have introduced some improvements to our test infrastructure and continued our process of deprecation of redundant functions. In total we addressed 109 issues in 523 commits.

Regression fixes

During this release cycle we became aware of a couple of small regression.

The first was provided by the newest member of the REPLAY team Dirk Mittelstraß, author of the OSLdecomposition package. He found that function analyse_SAR.CWOSL() could crash during the plotting phase with a somewhat confusing figure margins too large error if the input was an object with decomposed signal components generated from OSLdecomposition. Calling the function a second time would then produce an error mentioning an invalid graphics state.

Crashes that occur while R is plotting are sometimes hard to debug, and even more so if they happen only under specific conditions that depend on some external state, such as the size of the plot device. Specifically, this error didn’t occur outside of RStudio or if the RStudio plot window was large enough, but it could be triggered very consistently when working in RStudio on a laptop.

In cases when the cause of the error is completely mysterious, a good approach towards finding a solution is to identify when the problem started. The best tool for this job is git bisect: with this we can first mark as bad the current development version and as good a working past version. From then on, git can apply semi-automatically a bisection approach so that intermediate versions can be tested until we find the one that introduced the bug. Once the guilty commit was identified, finding the fix was easy. The complete details are recorded in issue 1188.

Another regression was introduced in v1.1.1 and affected plot_RadialPlot(): the stats argument was no longer functional, and therefore it was not possible to mark the maximum, minimum and median points in the plot. That went unnoticed because we didn’t have a graphical snapshot that used that argument. The fix included amending one of the snapshots to specify stats so that future regressions of this type will not occur.

A final regression affected plot_DoseResponseCurve() (and consequently also analyse_SAR.CWOSL() and analyse_pIRIRSequence()), and had to do once again with a mismatch between symbols and labels in the legend. We had already had a fix for a similar issue in the previous release, but at that time we didn’t notice that mode = "extrapolation" had not been taken care of. We have carefully reviewed all cases, and hopefully this problem has now been fixed for real.

Graphical improvements

A large number of small improvements to plots have occurred, so below we present only a selection of the most interesting ones.

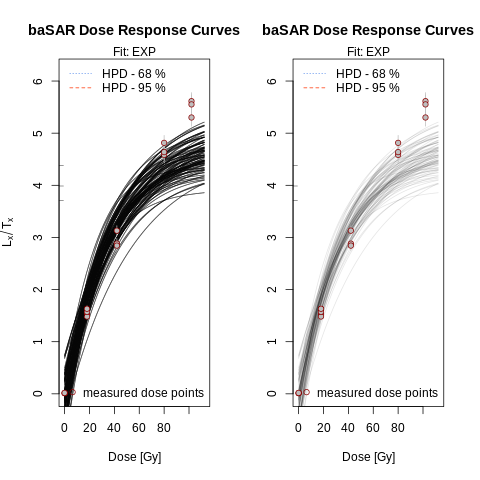

Function analyse_baSAR() overplotted the dose response curves when fewer than 1,000 iterations for the Markov chain Monte Carlo were used. The function had an hardcoded value of 1,000 curves to draw, meant to provide a way of thinning the results if a much larger number of MCMC iterations were used. However, due to R’s vector recycling rules, for runs that had fewer than 1,000 iterations this caused the same curves to be plotted multiple times over each other, thus appearing much darker than expected. Besides, this also caused a slowdown, as curve drawing is not vectorized. In the example below, we can compare the previous plot (left, 58s to produce) and the current one (right, 26s).

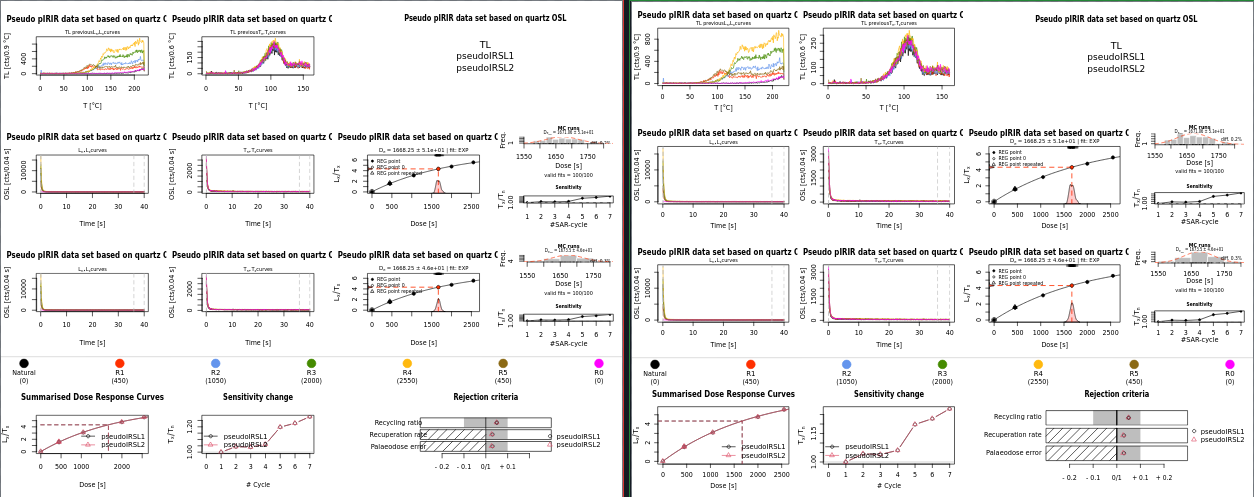

We introduced a number of improvements in the plots generated by analyse_pIRIRSequence(). In particular we tried to make better use of the plot area so that not too much blank space is left. The rejection criteria subplot on the bottom right has also seen improvements in the layout of labels and legend so that they should no longer intersect with the boxes. Note that these plots still look a bit crammed only because that’s the resolution available when generating the graphical snapshots. With the default plot sizes in R, they will generally look better.

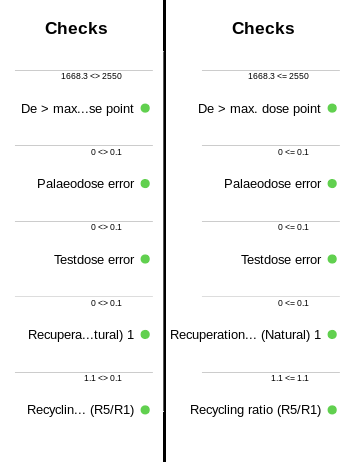

Also the rejection criteria plot of analyse_SAR.CWOSL() has seen some slight modifications. The feedback we have received so far has been slightly negative, so we’ll try to further improve this plot in the future. In the meantime, the little touches we have applied should already improve clarity and presentation: As can be seen above, we do not shorten the criteria labels unless strictly necessary, so their names are more legible. Moreover, we now use a <= or >= sign (rather than the <> used previously) so that it’s more obvious which side of the threshold is the desired one.

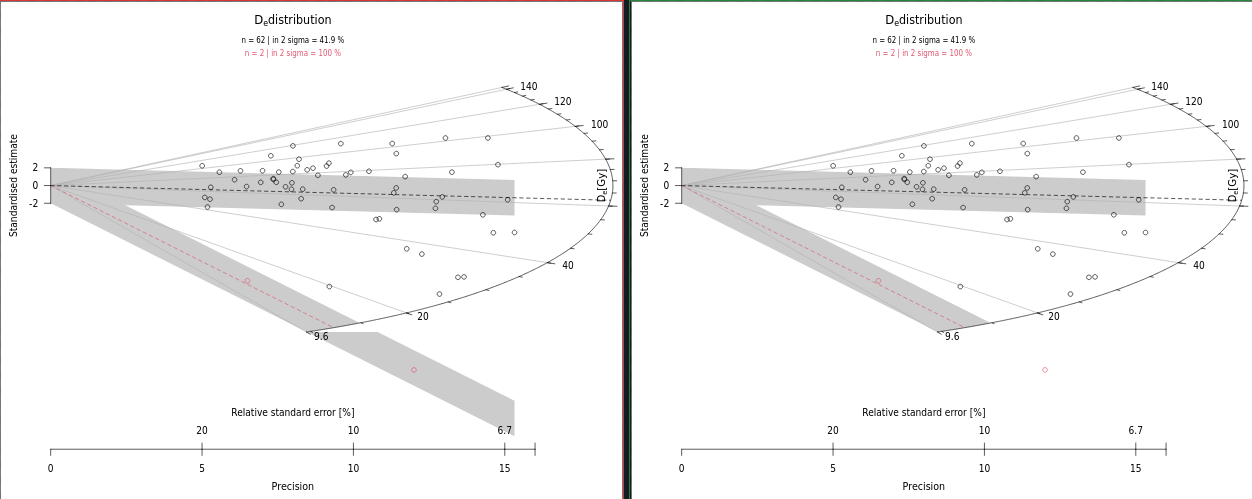

For plot_RadialPlot() we fixed some weird artifacts that could appear if two inputs had wildly different distributions:

Performance improvements

Already for version 1.0 of Luminescence we had boosted the performance of analyse_IRSAR.RF(). In this release cycle we identified two further optimizations in our C++ implementation (see issue 1210 and issue 1230 for a discussion of the implementation details). Across several test cases, these changes yielded at least a 45% speed-up, as can be seen in the table below (times are in seconds).

It turns out that these changes also reduced our code size, which is very welcome for a package of the size of Luminescence given CRAN’s strict limits. The table below reports the object file sizes in bytes for the C++ engine of analyse_IRSAR.RF() and of for the entire dynamic library of the package:

Test parallelization

Our testsuite contains now 3,316 tests (we had 3,253 in 1.1.1), with the largest increase being in the number of graphical snapshots (from 90 to 154) and numerical snapshots (from 180 to 225).

Our set of testcases has always taken a few minutes to run, which can feel like ages when developing. However, with the number of tests always growing, we felt it was time to implement parallelism in out test suite. On paper this sounded straightforward, as the testthat package only requires to add the following line to the DESCRIPTION file to operate in parallel:

Config/testthat/parallel: TRUE

In reality, this exposed a number of cases in which subtle (and unexpected) dependencies between tests existed. These were mainly due to the way R handles the graphical device.

Effectively, each time some graphical parameters are set before a plot is drawn, these persist also after the plot is completed, and therefore can affect subsequent plots if they are not properly reset. Already in the past we had discovered and fixed a few of these, but the number of other cases that this parallelisation effort uncovered was really quite astonishing. It took us 3 attempts and various fixes throughout the codebase before the simple change above could be left in permanently, as each time new failures were discovered by the continous integration servers.

The way out was to use a little-known utility present in the testthat package, the so called state inspector. This allows to record and compare the value of a set of variables of interest before and after each test file is run. If these are not identical, it means that the running of a function has altered the global state, and thus it can potentially affect subsequent functions. In our case, we were eventually able to define the set of graphical parameters of interest (ignoring those that get changed automatically upon the modification of other parameters) with this function:

testthat::set_state_inspector(function() {
  ## collect the settable parameters
  pars <- par(no.readonly = TRUE)

  ## ignore those that we can't seem to restore properly or that give us
  ## error when restored (such as pin < 0)
  pars$fig <- NULL
  pars$fin <- NULL
  pars$pin <- NULL
  pars$plt <- NULL
  pars$usr <- NULL
  pars$xaxp <- NULL
  pars$xlog <- NULL
  pars$yaxp <- NULL
  pars$ylog <- NULL

  list(par = pars)
}, tolerance = 1.5e-6)

Using this function also revealed a small bug in testthat, which led to the introduction of the tolerance parameter used above.

All this effort has been largely rewarded, as now tests run locally in about 1 minute when using 8 cores (instead of 5.5 minutes of a single-core run), because while the slowest test are occupying one of the cores, the rest of the tests can progress on other cores. This speed up is also visible on the continuous integration infrastructure, where although only 2 cores can be used, test times (including building the package and its dependencies and coverage analysis) have gone from about 17m to about 11m.

Function removals and deprecations

One of the ambitious goals of the REPLAY project is to ensure that the package will stay alive for the next 10 years. To achieve this we need to ensure that we do not carry around functionality that is no longer of use or that has been reimplemented in a better fashion.

As part of this, we constantly deprecate functions so to give time to users to prepare for upcoming removals. When a function is deprecated, it will raise a warning when it’s used, so the people using it will notice. Also this time we have marked a few functions as deprecated; they will be removed in the next release.

Functions is.RLum(), is.RLum.Data(), is.RLum.Data.Curve(), is.RLum.Data.Spectrum(), is.RLum.Data.Image(), is.RLum.Analysis() and is.RLum.Results() were meant to provide a straigthforward way to test the class of objects created by Luminescence. In reality, they were almost never used internally because they incur a (small) cost due to the S3 method dispatch in R. We also believe that outside of the package they do not have much of an audience (beside perhaps other package authors). Given that a fast and reliable way of testing whether an object is of a given type only requires using the inherits() function, as in inherits(object, "RLum.Data.Curve"), there is effectively no loss of functionality with their planned removal.

Functions github_commits(), github_branches() and github_issues() have been deprecated because they are out of scope for the Luminescence package. They were written when the functionality of GitHub was somewhat weaker, but now they are no longer worth keeping and maintaining.

Functions CW2pHMi(), CW2pLM(), CW2pLMi() and CW2pPMi() (deprecated since 1.0.0) have been removed, but their functionality remains in the corresponding convert_CW2pHMi(), convert_CW2pLM(), convert_CW2pLMi() and convert_CW2pPMi() functions.

Upcoming work

We foresee for the next release to have a few new functions added to the package, as well as even more cosmetic and stability improvements. If you are affected by bugs or even just small annoyances with the package, the best course of action is to report an issue (preferably with steps to reproduce). And if you’d like to contribute new functionalities or provide a bug fix directly, check out our guidelines for contributors.
